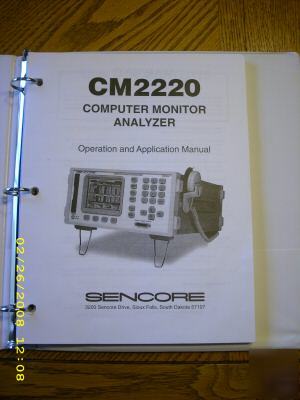

Sencore CM2220 computer monitor analyzer w/ manual

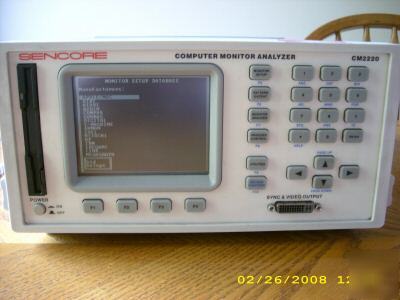

CM2220 - Computer Monitor Analyzer
A complete and programmable high bandwidth RGB video generator with color analysis, unique "Process Generator"â„¢, and a complete set of video test patterns to help you identify monitor defects.
Fully programmable scan frequency and pixel RGB video generator:
- Pixel resolution to 2048 horizontal and vertical
- Scan frequencies to 250 kHz horizontal and 250 Hz vertical
- Adjustable blanking times, color levels, signal level, and aspect ratio
Complete analyzing system providing special features to round out the package:
- Date storage disc for saving and loading formats, alignments, and testing procedures
- Keyboard interface for easy entering of alignments and procedures
- DDC1 and DDC2B compatible for digital display channel testing
- Expandable for future accessories to enhance your monitor troubleshooting capabilities
Integrated Auto "ColorPro"â„¢ to give you the confidence every monitor you service is operating to the manufacturer's standards.
Exclusive "Process Generator"â„¢ for entering interactive alignment and performance testing procedures to guide you through routine testing and alignments.
CM2220 Condensed Specifications
Video Bandwidth: 220 MHz
Rise Time: less than 2.0 nS
Sync Range: 10.000 kHz to 250.000 kHz
Pixel Range: 80 to 2048 pixels active video
Pixel Resolution: 1 pixel
Sync Resolution: 1 pixel to 110 MHz and 2 pixels 110 to 220 MHz
Sync Range: 10.00 Hz to 250.00 Hz
Pixel Range: 80 to 2048 pixels active video
Sync Resolution: 1 horizontal line
More than 2,000 computer monitor format storage locations internal and 3.5" floppy drive
Color Analysis: Color Accuracy: Y: ± 4%, ± 1 digit, xy:± 0.002
Repeatability: Y: ± 0.3%, ± 1 digit; xy: ± 1%, ± 1 digit
Luminance Range: .5 - 300 ft-lamberts
Screen Refresh: 50 to 100 Hz
DDC Compatible: DDC1 and DDC2B
Audio: Left and right audio, 1 kHz tone
Output Protection (sync and video): ± 250 VDC or 250 Peak ACV
Power: 100 to 240 ACV, 47 to 63 Hz
