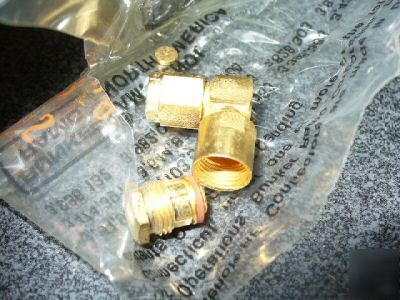

Connector,plug,electrical
BODY STYLE - 3D ANGLE, SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 0.691 INCHES MAXIMUM
OVERALL HEIGHT - 0.875 INCHES MAXIMUM
OVERALL DIAMETER - 0.345 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNS
NOMINAL THREAD SIZE - 0.250 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - COMPRESSION NUT
SHELL SURFACE TREATMENT - SILVER
CONTACT POSITION ARRANGEMENT STYLE - ABAY NONSTD SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - SIDE SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY AND 1.000 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD AND SHELL SURFACES SILVER
