Penn-tech 2-cr-100-250 strand tensionmeter dynamometer
Penn-Tech Model 2-CR-100-250 Strand Tensionmeter

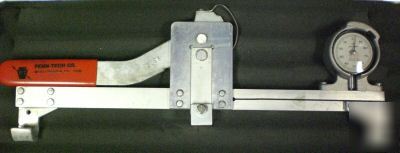

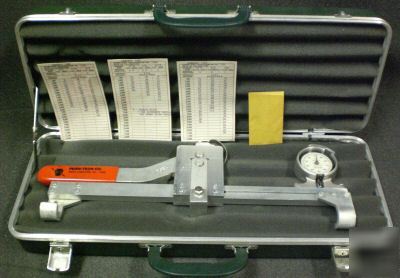

You are looking at a strand dynamometer from Penn Tech. The strand Dynamometer deflects the strand out of line and measures the force tending to restore the strand to a straight line. The amount of restoring force is indicated by a pointer on the dynamometer dial. This unit has 3 calibration charts that were done in 1982 and each one has 3 different sizes with different tension ranges.
* Cal. #1 has 3/16 (tension 500-3000 lbs), 1/4 (tension 500-4000 lbs), 5/16 (tension 500-5000 lbs)
* Cal. #2 has 3/8 (tension 500-6000 lbs), 7/16 (tension 500-7000 lbs), 1/2 (tension 500-8000 lbs)
* Cal. #3 has 9/16 (tension 500-9000 lbs), 5/8 (tension 500-7000 lbs), 3/4 (tension 500-11,000 lbs)
This unit is very similar to the GMP Strand Tensionmeter. A new unit similar to this one would cost about $2500.
