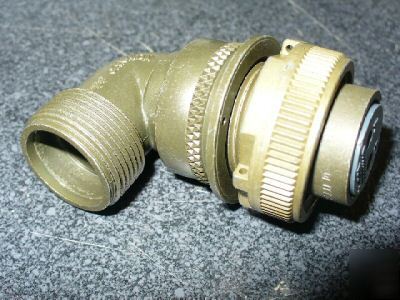

Connector,plug,electrical
BODY STYLE - 13A ANGLE SHAPE, W/O CABLE CLAMP
OVERALL DIAMETER - 1.250 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CONNECTOR END - 1.664 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CABLE END - 1.688 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF AND UNEF
NOMINAL THREAD SIZE - 0.875 INCHES AND 1.000 INCHES
THREAD QUANTITY PER INCH - 20 AND 20
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ACAE 16S-4 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 2 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 900.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 1250.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 1,GRADE B MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 1,GRADE B FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
FEATURES PROVIDED - PRE-TINNED TERMINAL
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF
TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3108 GOVERNMENT STANDARD
III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.002 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-5015
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3108R16S-4S
