CXD2300 CXD2301 CXD2302 low power adcs
The price is for each converter part.
These converters are in a 32pin QFP package that saves board space all have the same pin out.
The converters should be clocked at 13.Mhz clock rate for MPEG2 or at 18Mhz for HDTV line standard.
These converters use a two step process to convert the input signal to a 8bit digital data,these are very low power converters.
They all have a simple to use video clamp circuit included, the clamp circuit should sample in the vertical retrace time of the input signal.

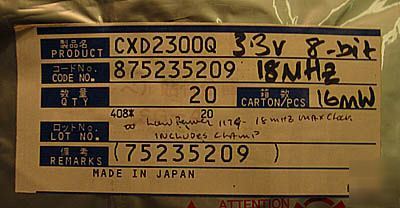

The CXD2300 ( 17 ) Have a input sample hold that would allow the chip to be used as a down-converter.
This part is a low power part with max clock rate of 18Mhz.

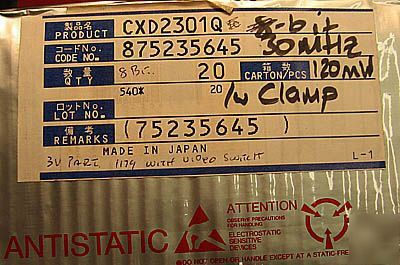

The CXD2301 ( 20 ) This is the middle speed converter with a max clock rate of 30Mhz.

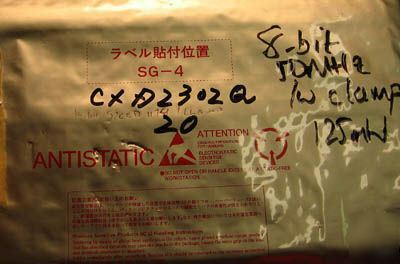

The CXD2302 ( 20 ) This is the high speed converter of this group, this is max clock rate of 50Mkz.
The chips are new in a sealed package and they have been stored in a controlled environment.
All returns require a Return Authorization number.
All returns or exchanges must be received in original condition.
All returns are subject to return inspection and verification prior to the final disposition.
Any unauthorized merchandise returned to will be refused.
We do not accept any return merchandise from outside the USA.
