Phase perfect® digital phase converter - ul listed, cnc

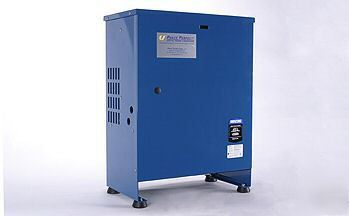

Digital Solid-State Phase Converter
GENTEC American Rotary's Phase Perfect® Digital Phase Converters provide balanced three phase output in any load condition. Our solid state digital phase converter is perfect for equipment where voltage balance is critical even under the most demanding overload situations. The only phase converter that offers the precise voltage regulation (1% or better) of all three lines with varying loads from no load to full load.
* Precisely balanced voltage under all load conditions
* Pure sine wave output voltage with 120 degree phase separation.
* Power factor is better than 0.99
* Protects itself and your equipment
* Built-in motor starter option
* Simple to configure and install
GENTEC American Rotary manufactures and distributes the largest selection of phase converters online!
American Rotary offers the largest selection of single and three phase transformers online!
Please call toll free 1-(***)-743-6832 for sizing assistance.
*Nema MG1 standard for voltage unbalance
Precisely balanced voltage under all load conditions:
GENTEC American Rotary manufactures and distributes the largest selection of phase converters in the world!
Pure sine wave output voltage with 120 degree phase separation:
Phase Perfect for CNC applications:
As with static and rotary phase converters, the two single phase lines pass straight through the digital phase converter. These lines are unaltered and maintain a pure sinewave. The 120 degree separation of the phases is created and maintained digitally using the DSP.
Phase Perfect digital phase converters offer the best voltage regulation (1% or better) under any load condition!
Power factor is better than 0.99:
This minimizes the current draw on the single phase line. This in turn maximizes the efficiency of the converter and keeps power loss and waste to a minimum. Back to top >
Our experienced staff is available toll free 24/7 to answer your questions.
Using semiconductors and an IGBT switch, the loss in power is minimized resulting in better than 97% efficiency at any load. Back to top >
Protects itself and your equipment:
All models monitor the incoming current and will shut down if overloaded for more than a predetermined time period. Each model also comes with an output contactor for switching on the load after a warm-up period. This output contactor can be configured with a current overload to provide an overload motor starter for protecting the load. These features protect the operated equipment from under-voltage, over-voltage, and single phasing. Back to top >
GENTEC American Rotary manufactures and distributes the largest selection of phase converters in the world. Established in 1991, GENTEC has consistently led the industry in innovation and design. In recent years, we have expanded our product line to include transformers, generators, electric motors, load centers, safety switches, frequency drives, 3-phase accessories, air compressors, and more... for use in industrial, small business, and hobby applications.
Please email ****@AmericanRotary.com or call toll free
Hours: Monday-Sunday 6AM-10PM with 24-hour toll free technical support.
Built-in motor starter option:
With the addition of a current overload, the output contactor can be used as a full current motor starter. The digital phase converter can then be used as a whole as a motor starter. After the unit is turned on, there is a warm-up period, and then the motor starter is activated, which can start the load. This feature is commonly used in deep well pumps and other simple systems that require a starter. Back to top >
Every digital phase converter can be configured to use a remote start. This can be particularly convenient in offsite applications. Back to top >
Simple to configure and install:
Comes with a clear step-by-step installation guide only available through GENTEC American Rotary. Back to top >
Input and output filters smooth the PWM wave form. This eliminates the harmonics which cause interference with other equipment and TVs that operate on the same single phase service. Unlike a drive, the 120 degree phase shift and reduction of distortion or harmonics contribute to the near perfect power factor of 1 . Back to top >
Manufactured by Phase Technologies and distributed by GENTEC LLC, American Rotary's digital solid state phase converters were designed and are manufactured in the USA. Back to top >
All photography herein is protected and may not be altered or duplicated.
Copyright 2006-2007 GENTEC American Rotary
Phase Perfect is a Trademark of Phase Technologies.
