Transducer -- optical incremental rotary enc
Sales tax will be added to purchases from California, Illinois, and Minnesota. Before paying, if you live in any of these states, please allow me to add the sales tax on to the invoice.

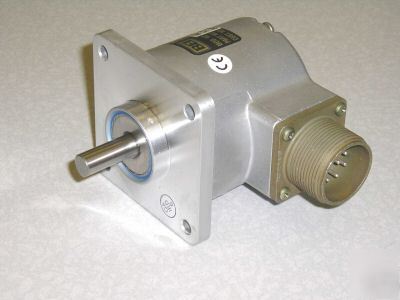

TRANSDUCER - OPTICAL INCREMENTAL ROTARY ENCODER; SIZE 20
NEMA TYPE 4 (IP66) ENCLOSURE, SERVO MOUNT WITH FACE MOUNT
HOLES, .375" DIA. SHAFT, 24 VDC INPUT POWER, 5 VDC TTL
DIFFERENTIAL LINE DRIVER OUTPUT, CHANNELS A & B & Z, 10 PIN
MS3102R18-1P ELECTRICAL CONNECTOR, 500 CYCLES PER
REVOLUTION, 100 KHZ FREQUENCY RESPONSE, 15000 RPM SLEW,
SPEED, 80 LB. AXIAL AND 80 LB. RADIAL SHAFT LOADING,
0 DEG C TO 60 DEG C AMBIENT RATED, 50 G'S AT 11 MILLISECOND
DURATION SHOCK RATED, 20 G'S AT 5 TO 2000 HZ VIBRATION RATED.
ALLEN BRADLEY, CATALOG NO. 845T-HZ53ECM
