Crouse hinds xp receptacle CESD2214 nx 3 phase 460 230V

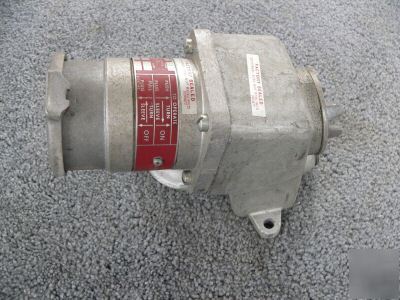

Crouse Hinds Explosion Proof Receptacle (no plug included)
CESD Arktite ReceptacleDelayed Action, Circuit Breaking, uses CPH Plugs
Three Phase, 460 volt 7 amp 1 hp, 230 volt 30 amp 3 hp
(Note unit is labelled 1 phase, however the catalog says CESD2214 is 3 phase, and it has 4 poles, so three power plus a ground seems to make sense for 3 phase 460 volt.)
http:// /catalog/pdfs/01011to01013.pdf
CES and CESD receptacles with CPH plugs
with portable electrically operated devices
such as motor-generator sets, compressors,
conveyors, portable tools, lighting systems
in locations which are hazardous due to the
presence of flammable vapors or gases
in damp or corrosive locations
at petroleum refineries, chemical and
petrochemical plants, and other process
industry facilities where similar hazards exist
CES and CESD receptacles are equipped
with a delayed action rotating sleeve which
prevents complete withdrawal of the CPH
plug in one continuous movement
The delayed action feature permits the plug
to be used as an emergency push-pull switch
