Mcu / avr (89S51) development board w/ programmer

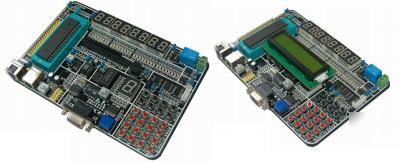

MCU (89S51) Development Board w/ Programmer
* USB cable (For power use DC +5v)
* RS232 Cable (For programmer)
* 89S52 Chip (Support 89C51 / 89S51 / 89C52)
* 1602 LCD with Yellow backlight
* CD-ROM (Programmer Driver , PDF manual , circuit , Sample code , MPLAB 7.50 , "Support Basic" etc.)
Compatible for OS including Windows 98, Windows 2000/NT, Windows XP and Windows 2003
1. RS232 serial communication – to realize the communication between MCU board and computer.
2. 32-way independent LED at I/O port.
4. 8-way independent key-press.
6. Series of ZIF experimental chip socket – 40PIN socket.
7. ULN2003 Step Motor ( Step motor +$5)
8. Read/write 24CXX series chips
9. Read/write EEPROM of 93CXX
10. DS18B20 digital temperature sensor – high accuracy and sensitivity. .(DS18B20 is not include - US$3.5 for each)
11. Infrared remote-control receiver – to practice infrared remote-control decoding and all kinds of infrared remote control.
12. Buzzer voice/PWM output experiment – to practice normal voice, music and PWM output sound.
13. DS1302 Clock selection – jumper for switch between various oscillation modes, to replace crystal vibration of different frequency as required by development of product.
14. On-board programming module – to communicate with computer through RS232,
15. On-board power module – power supply through USB.
16. 12864-character LCD–128*64 lattices. (128x64 character LCD is not include - US$18 for each)
17. 1602-character LCD–internal 5*7 lattices, to display 16*2-character.
18. 8x 7-segment digital tube – to realize dynamic or static display experiment of digital tube, to display clock,temperature or to make counter.
19. 1x 7-segment digital tube – Through 74LS47 and 4066B
20. PS2 keybroad support – test with PS2
RS232 for PC to MCU board and Programmer port
ISP (In-system Programming) Port
ULN2003A with 4066 to Step Motor
Infrared remote-control receiver
p2.0 p2.1 p2.2 p2.3 p2.4 p2.5p 2.6 p2.7
