> Teco 7.5HP 1800RPM 213T odp 230/460V 3 phase

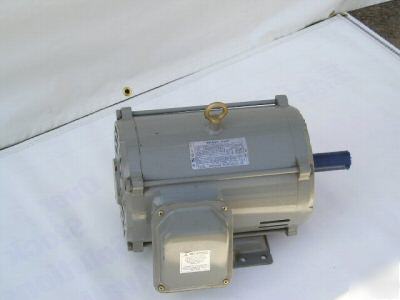

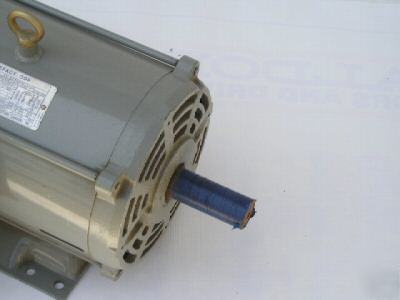

Teco 7.5HP 1800RPM 213T odp 230/460V 3 phase
Available in Horizontal Foot Mounted or JM/JP Frame Configurations
Meets or Exceeds EPACT Efficiency Levels
Department of Energy Efficiency Certification # CC002A
36 Month Warranty from Date of Manufacture
60 Hz - 230/460V (Usable on 200V and 208V)
1.15 Service Factor – Continuous
Class F Insulation with Phenolic Alkyd Resin Varnish
Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted.
Designed for 40ËšC Ambient Temperature - Note (1)
Designed for 3300 ft. Elevation - Note (2)
Rolled Steel Frame and Conduit Box
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Light Gray – Munsell N5.0
Double Shielded Bearings on Frames Pre-Packed with MULTEMP SRL Grease
Grounding Terminal Inside Main Box
VFD Rated per NEMA MG1, Part 31, 4.4.2 - Note (3)
Speed Ranges: 20:1 VT, 10:1 CT
Motors are UL Recognized, CSA Approved, and CE Marked
