New onicon f-1210 dual turbine insertion flow meter
NEW ONICON F-1210 DUAL TURBINE INSERTION FLOW METER WITH ANALOG OUTPUT (113005500311)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

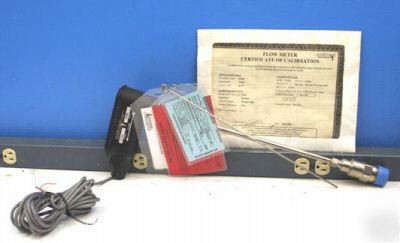

Onicon F-1210 Dual Turbine Insertion Flow Meter with Analog Output
* Serial Number: Quantity of 2 Available
* Serial Number 124395: 3" Copper 300 - 360 GPM
* Serial Number 124396: 3" Steel 0 - 780 GPM
* Copy of User’s Manual Included
* Onicon insertion turbine flow meters are suitable for measuring electrically conductive water-based liquids. The F-1210 model provides non-isolated 4-20 mA and 0-10 Volts Analog output signals that are linear with the flow rate.
* Chilled water, hot water, condenser water, and water/glycol/brine for HVAC
* Process water and water mixtures
* Every Onicon flow meter is wet-calibrated in our flow laboratory against primary volumetric standards directly traceable to NIST. Certification of calibration is included with every meter.
* Unmatched Price vs. Performance: Custom calibrated, highly accurate instrumentation at very competitive prices.
* Excellent Long-term Reliability: Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearings systems provide a mechanical system that virtually does not wear.
* Installation Flexibility: Patented dual turbine models deliver outstanding accuracy in short pipe runs.
* Simplified Hot Tap Insertion Design: Standard on every insertion flow meter. Allows for insertion and removal by hand without system shutdown.
* Accuracy: ±0.5% of reading at calibrated velocity; ±1% of reading from 3 to 30 ft/s (10;1 range); ±2% of reading from 0.4 to 20 ft/s (50:1 range)
* Sensing Method: Electronic impedance sensing (non-magnetic and non-photoelectric)
* Pipe Size Range: 2 ½†through 72†nominal
* Supply Voltage: 24±4 Volts AC/DC at 50 mA
* Liquid Temperature Range: Standard - 180° F continuous, 200° F peak; High Temp -280° F continuous, 300 ° F peak
* Ambient Temperature Range: -5° to 160° F (-20° to 70° C)
* Operating Pressure: 400 PSI Maximum
* Pressure Drop: Less than 1 PSI at 20 ft/s in 2 ½†pipe, decreasing in larger pipes and lower velocities
* Output Signals Provided: Analog Outputs (Non-Isolated) – Voltage Output – 0-10 Volts; Current Output – 4-20 mA
* Frequency Output: 0-15 Volts peak pulse, typically less than 300 Hz
