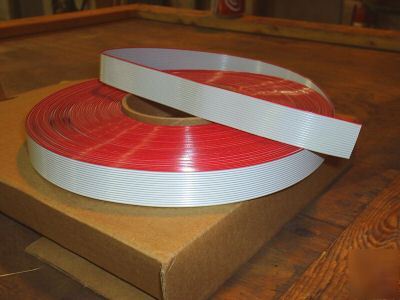

Cable,special purpose,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, PLASTIC POLYVINYL CHLORIDE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
SURFACE TREATMENT - TIN CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 28 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 7 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 36 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 16 MOLDED TOGETHER W/NO OUTER COVERING
COLOR - GRAY 1ST POSITION COVER ALL CONDUCTORS
VOLTAGE RATING - 300.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE - 3 FLAT
CROSS-SECTIONAL HEIGHT - 0.035 INCHES NOMINAL
CROSS-SECTIONAL WIDTH - 0.800 INCHES NOMINAL
TEMP RATING - -20.0 DEG CELSIUS AND 105.0 DEG CELSIUS
SPECIAL FEATURES - ONE EDGE RED
