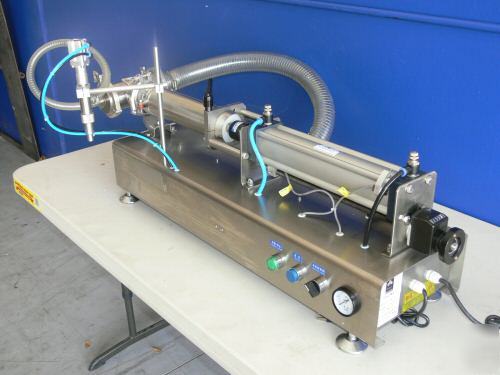

Apolo fp-1000 piston filling machine dispencer filler

Dispense Liquids Quickly, Repeatedly, and Accurately
Piston Fillers measure and dispense free flowing products - such as thin and/or dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or hopper and taken into the product cylinder. The down stroke commences as soon as the product cylinder has reached its predetermined fill level. The piston pushes the product out of the cylinder and into the container.
The amount of product to dispense is set by a simple adjustment of the length of the piston stroke (the distance covered by the piston). The adjustment is performed by turning an small adjusting wheel located at table-top level. If the stroke is reduced the volume of dispensed product decreases. On the other hand, lengthening the piston stroke will result more product being dispensed. Once the set, the piston filler will dispense accurately and repeatedly. Two repeated cycles can be performed to fill volumes that are higher than the cylinder capacity.
Our Volumetric Piston Fillers are used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.
* Filling Range: 6.76 – 33.81 oz. (200-1000 ml)
* Approximate Speed: 8 - 14 pcs/min(depending on operator speed, product density, draw length, a fill speed, among others)
* Suitable to fill low to mid density liquids (0 – 3,000 cp)
* All Parts in Contact with Product are Food Grade (SS 316)
* Stainless Steel Construction

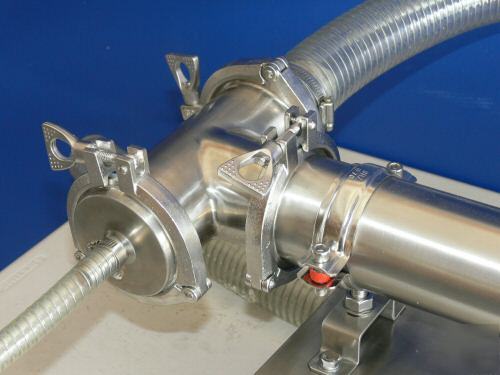

* Rugged Rotary Valve System Design
* Adjustable Volumetric Piston System with Numeric Reference Display
* Piston Feed Speed Adjustment
* No-drip Option Included and Installed
* Extremely Accurate (+/- 1%)
* Extremely Easy to Clean and Maintain
* Sanitary Stainless Steel Quick Disconnect Fittings
* Quick Connect/Disconnect Pneumatic Fittings.
* Semi Auto/Continuous Operation Selector Switch
* Air Intake Pressure Adjustment
* Piston Volume Adjust with Numeric Display

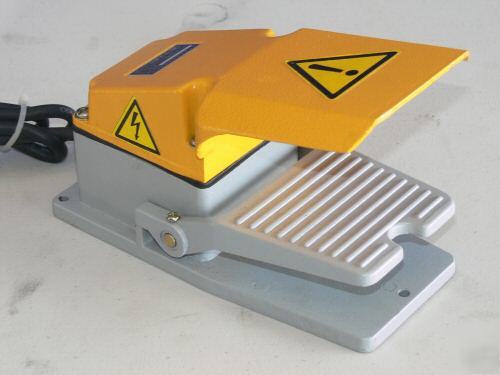

* Includes Electro-mechanic Industrial Duty Pedal
Available Options (not included with the machine)
Double Jacket Heated Hoppers (For Hot Products)
Agitating Auger (For Products that need mixing)
Custom Nozzles (To direct flow and/or to prevent foaming, splashing, excessive aeration, etc.)
Various O-ring Materials (Teflon, Silicon, Floroelastomers, Encapsulated Silicon, etc.)
Photo Eye for Automatic Cycle Actuation
Boxed Machine Size: 40" (1016mm) x 48" (1219mm) x 25" (635mm)
Boxed Machine Weight: 107 lbs (48.6 kg)
