1785 PLC5 programmable controllers quick reference book

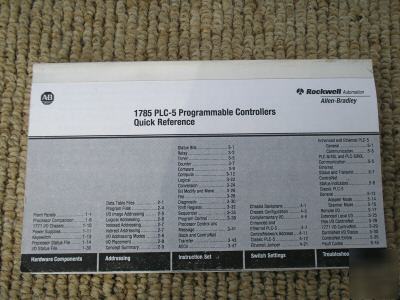

A gently used 1785 PLC 5 Programmable Controllers Quick Reference Book.
A pocket size book for making a quick reference to the workings and programming of the PLC 5.
Hardware Componets, about power supplies, front panels, keyswitch, I/O status, and processor comparisons.
Addressing, about data table files, I/O placement, (indirect, indexed, logical, I/O image addressing), program files.
Instruction Set, about all the different types of PLC 5 instructions.
Switch Settings, about chassis backplane, chassis config, enhanced and ethernet PLC 5s, ControlNetwork address, ethernet jumper.
Troubleshooting, about ehanced and ethernet communications, ControlNet, status indicators, different modes, fault codes, remote and local I/O.
