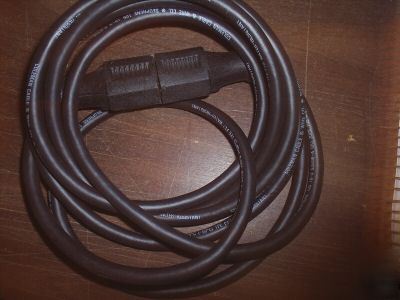

Cable assembly,power,electrical
ACCESSORY WIRE TYPE AND QUANTITY - 1 GROUND
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, RUBBER NATURAL 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS, RUBBER NATURAL 1ST POSITION JACKET CABLE
MATERIAL DOCUMENT AND CLASSIFICATION - MIL-I-3930,TYPE IS MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 16 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 26 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 30 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 2 SINGLES
VOLTAGE RATING - 300.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS
STYLE DESIGNATOR - 41 JACK AND EXTERNAL CONNECTOR
CROSS-SECTIONAL SHAPE STYLE - 6 ROUND
CROSS SECTION OUTSIDE DIAMETER - 0.350 INCHES NOMINAL
TEMP RATING - 60.0 DEG CELSIUS
TERMINATION TYPE - CONNECTOR INTERNAL STRAIGHT 1ST END ALL CONDUCTORS, CONNECTOR EXTERNAL STRAIGHT 2ND END ALL CONDUCTORS
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER - WD1 FIG. 5-15 FEMALE 1ST END ALL CONDUCTORS, WD1 FIG. 5-15 MALE 2ND END ALL CONDUCTORS
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE - 81705 1ST END ALL CONDUCTORS, 81705 2ND END ALL CONDUCTORS
NONDEFINITIVE SPEC/STD DATA - 2 CLASS AND A GRADE AND 1 KIND AND 1 SERIES AND 2 STYLE
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - J-C-1270
