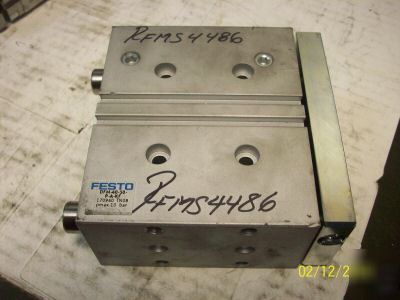

Festo dfm-40-50-p-a-kf guide cylinder
APPEARS NEW WITH SHELF WEAR AND TEAR
Centre of gravity distance from working load to yoke plate 50 mm
Operating mode of drive unit Yoke
Cushioning P: Flexible cushioning rings/plates at both ends
Guide Recirculating ball bearing guide
Position detection For proximity sensor
Operating pressure 1.5 - 10 bar
Mode of operation double-acting
Operating medium Dried compressed air, lubricated or unlubricated
Corrosion resistance classification CRC 0
Ambient temperature -5 - 60 °C
Impact energy in end positions 0.52 Nm
Max. useful load as a function of the stroke at defined distance xs 109 N
Theoretical force at 6 bar, return stroke 686 N
Theoretical force at 6 bar, advance stroke 754 N
