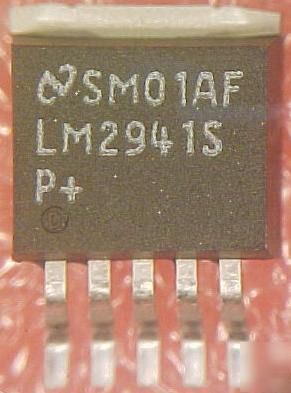

LM2941S national 1A low dropout adj regulator lots
1A Low Dropout Adjustable Regulator
Output voltage adjustable from 5V to 20V
Dropout voltage typically 0.5V @ IO = 1A
Output current in excess of 1A
Internal short circuit current limit
Mirror image insertion protection
TTL, CMOS compatible ON/OFF switch
The LM2941 positive voltage regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN ? VOUT ? 3V). Designed also for vehicular applications, the LM2941 and all regulated circuitry are protected from reverse battery installations or two-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. Familiar regulator features such as short circuit and thermal overload protection are also provided.
All are new unless otherwise specified. For a look at the data sheet of this item click on the PDF Icon below the photo of this component located above this description..
Multiple items will automatically be combined in either case.
