Marathon 1 hp dual speed general purpose electricmotor
New In Box Marathon Electric General Purpose Motor with Dual Speed and Voltage.
The motor has Marathon's patented "VCD" ( voltage change device).
At 60 Hz: HP 1, RPM 1725, Volts 208-230 / 460, FLA 3.5-3:6 / 1.8, Service Factor 1.15
At 50 Hz: HP 3/4, RPM 1425, Volts 190 / 380-415, FLA 3.4 / 1.7-1.9, Service Factor 1.15.

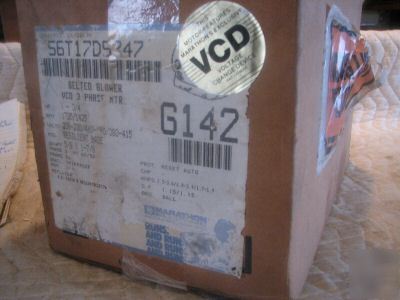

CAT# G142, Model# 3QA56T17D5347BP. Frame 56-70, Phase 3, Type TS, AMB 40 Degrees, Thermally Protected, DES-B Ser# 861510 012296.

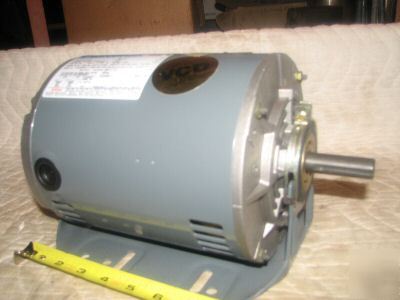

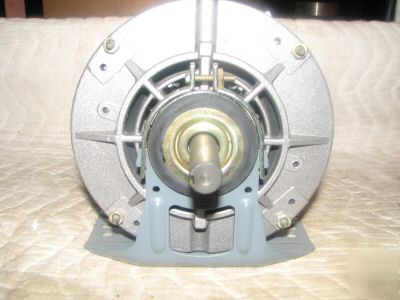

Motors has a 5/8" keyed shaft.
