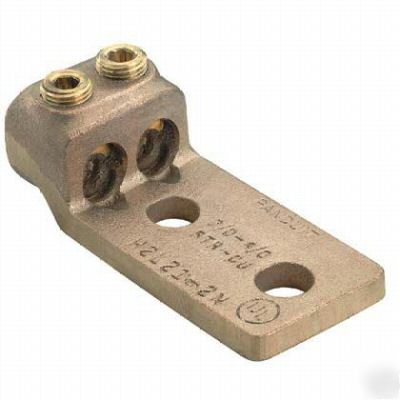

Pressure term conn. two barrel lug panduit H2L8-2N-2
These list for $72.97 each. These are new unused units. For Use with Copper Code Conductors • Allows for termination of two copper conductors • Cast from high strength corrosion resistant copper alloy to provide premium electrical and mechanical performance • Wire range-taking capability minimizes inventory requirements • Internal pressure plate provides uniform clamping force on conductor for premium electrical performance • Internal barrel serrations provide premium wire pull-out strength • Inspection window to visually assure full conductor insertion • Flat bottom allows for complete contact with mounting surface • UL Listed for use up to 600V and temperature rated 90°C Part Number: H2L8-2N-2 Product Family: Two-Hole, Straight Tongue, Two Barrel Lug Product Line: Lugs and Splices - Heavy Duty Copper RoHS Compliancy Status: Compliant Part Description: Premium cast copper mech. connector, two barrel, two-hole, straight tongue lug, NEMA hole sizes and spacing. Product Type: Mechanical Connectors - Lugs UL Listed: Yes Height (In.): .92 Height (mm): 23.4 Length (In.): 3.94 Length (mm): 100.1 Copper Conductor Size Range: #4 SOL – #1 STR Stud Hole Size (In.): 1/2 Stud Hole Spacing (In.): 1.75 Tongue Width (In.): 1.38 Bolt Hole Size: 1/2 Hex Key Size (In.): 7/16 Tightening Torque (In-Lbs): 100 Tongue Length: 3.00 Tongue Thickness: .22 Tongue Width (mm): 35.1 Min. Order UOM: PC
KC Crafts can supply you with custom cable and wire harness assemblies for commercial, industrial, and established reliability requirements. KC Crafts can build interconnection assemblies to your specifications including ribbon, multi conductor (both shielded and non-shielded), and wire/cable connector assemblies.
We also offer custom control panel and enclosure modifications, wiring and panel assembly. We provide complete electro-mechanical assembly offering turn key solutions.
Using our large and diverse supplier base we can increase your design flexibility and in most cases assist in cutting your overall cost.
All work at KC Crafts is done in-house so that we are able to control all quality aspects of the project, supplying a quality, dependable, fairly priced product.
