Stepper motor 906 oz-in 8 wire dual s bipolar/unipolar

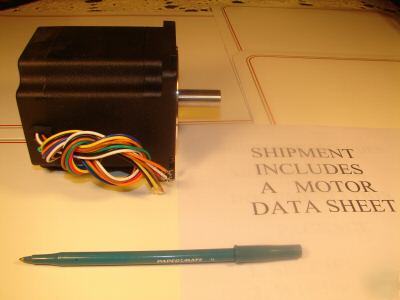

Brand New NEMA 34 906 oz-in stepper motor Includes documentation
Suitable for dirving mill tables with 3/4" to 7/8" drive screws
Single Shaft Front shaft=1/2" x 1-3/16" with Flat.
Bipolar series Volts=.4.27, Amps=3.05, Ohms=1.4, Holding torque=6.4 Nm. 0r 905 oz-in
Bipolar parallel Volts=2.1, Amps=6.1, Ohms=0.35 Holding torque= 6.4 Nm. or 905 oz-in
Unipolar Volts=3.01, Amps= 4.3, Ohms=0.70, Holding torque= 4.5 Nm or 640 oz-in
Body Diameter= 85.65 mm or 3.36"
