> New bodine electric bldc motor 1/5 hp 130V RPM10K 3314* *
New bodine electric bldc motor 1/5 hp 130V RPM10K 3314* *

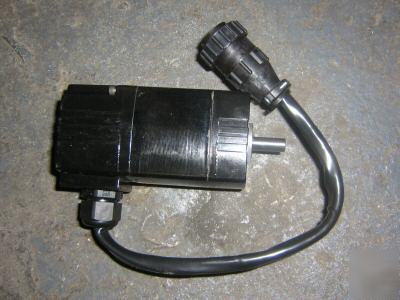

22B Series BLDC Motor Model 3314
* Totally enclosed, non-ventilated (IP-44).
* Plug-in connectors facilitate electrical connections.
* Electronic commutation provides quiet operation and low electro-magnetic interference (EMI) while eliminating brush maintenance and contamination from brush dirt.
* Molded hall sensor assembly for accurate commutation.
* Wound stator with exposed laminations provides excellent heat transfer and allows maximum power per motor frame size.
* Rare earth magnets on the rotor provide high torque and low rotor inertia.
* Brushless motors require a control.
* Performance ratings of 115° C winding, 25° C ambient, and no heat sink.
* May have to be operated below ratings if unfiltered control is used and if duty is intermittent and/or if heat sink is provided (consult a Bodine applications engineer first).
* May be operated above ratings if duty is intermittent and/or if heat sink is provided (consult a Bodine applications engineer first).
* Face mounting is standard.
View a replacement parts list for this series in PDF format.
* 360 pulse/revolution optical encoder model 0940 (can be used only on models that have an accessory shaft). Requires adaptor plate model 0993.
* Cable model 3983 for connecting 130V motors to Bodine chassis controls.
* "L" bracket kit model 5968 permits alternate mounting.
* Adaptor model 0993 for mounting encoder.
* Motors may be used with a variety of controls, including servo amplifiers, that produce square-wave current for 3-phase, 4-pole brushless motors with 60° commutation.
* We stock a full line of single-quadrant speed controls ideally matched for our brushless motors.
BLDC Connection [Download PDF]
