Coel asynchronous self braking 3 phase motor F80B6

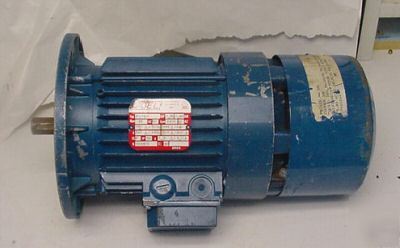

COEL ASYNCHRONOUS SELF BRAKING 3 PHASE MOTOR F80B6
The brake can be manually released with a special screw supplied with the motor. The surfaces of attrition are made with cast iron and the one at the motor side is auto-ventilated. The F series motor will ensure very high braking precision and constant of braking.

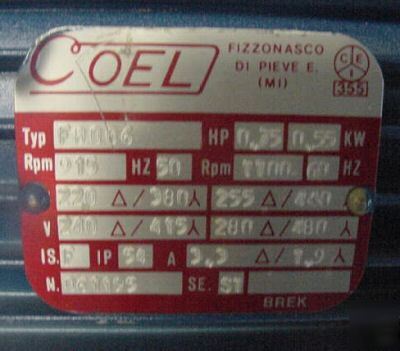

The double terminal box is provided with two additional cable glands on the same side. The F series motor is able to bear very hard work cycles . specs: 0.75 HP, 0.55 KW, @ 50 hz :915 RPM, 220/380 V and 240/475V, @ 60 hz: 1100 RPM 255/440V and 280/480V, IS: F, IP: 54, 3.3A/ 1.9A, SE.: S1, shaft size: 3/4 inch diameter and 1 1/2 inches long
