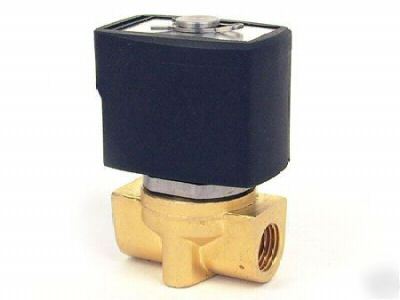

Electric solenoid valve - 24-volt (B20N-1/4-cd-24VDC)
Copyright © 2008 valves4projects.com
These high quality, general purpose 24-Volt DC solenoid valves with 1/4" female NPT ports are great for numerous applications. They are brand new and come with a 90-day warranty. You will not be able to find a better price for a high quality, 1/4" brass valve anywhere else!
This is one of our best suited valves for air applications. In addition, this valve works well with water and other very low viscosity fluids (e.g. diesel fuel, kerosine, alcohol etc.). We do not recommend this valve for gravity-fed systems due to its relatively small orifice size. See our other listings for valves suitable for gravity feed.
Normally Closed (valve opens when energized)
1/4" Female NPT Threads (18 threads per inch / US Standard).
Air: 145 psi / Water: 115 psi / Light Oil: 70 psi
Air, Water, Very Low Viscosity Fluids, Vacuum
Maximum Media Temperature 212° F
Continuous (can be left powered without overheating)
Nitrile Butadiene Rubber (NBR)
Can be attached with two 5 mm machine screws (not included)
