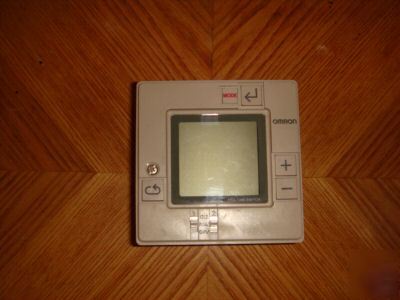

Omron H5L-a weekly timer/time switch
1/4 DIN Size Timer Features Prompted Programming and Large LCD Display
q 24 hours x 7 days programming using just 5 switches
q 16 program steps and cycle operation
q Two independent 15 A control circuits
q Manual override switch for each output
q Easy-to-read, large, 0.5 inch high LCD display
q Wide operating voltage range
Supply voltage: 100 to 240 VAC, 50/60 Hz
Timing function: Weekly timer, 24 hours x 7 days, ON and OFF programming
Contact type: Two SPST time limit contacts with manual override switches
Terminal form: Screw terminals accessible from front and back
Time setting range: 00:00 to 23:59 (hours:minutes)
Program capacity: 16 steps: ON = 1 step, OFF = 1 step, CYCLE = 4 steps
Cycle length: 1 minute to 23 hours 59 minutes
Minimum cycle interval: 1 minute between OFF and ON periods
24 hours x 7 days, ON and OFF programming
16 steps; ON = 1 step, OFF = 1 step, CYCLE = 4 steps
10 A at 250 VAC, 15 A at 125 VAC, 10 A at 30 VDC (resistive load at 25°C (77°F)
+15 seconds per month at 25°C (77°F)
LCD display: day, date, time, output status; 12.5 mm (0.05 in) high
Panel, track or surface; mounting brackets included
Front and rear connections, screw terminals
10 to 55 Hz; 0.75 mm (0.03 in) double amplitude
10 to 55 Hz; 0.5 mm (0.2 in) double amplitude
Variation due to voltage change
Variation due to temperature change
2,000 VAC, 50/60 Hz for 1 minute across current-carrying terminals and exposed
non-current-carrying metallic parts.
1,000 VAC, 50/60 Hz for 1 minute across control power supply circuit and contact control
output circuit and across non-continuous contacts.
100,000 operations minimum (resistive load, 15 A at 250 VAC)
