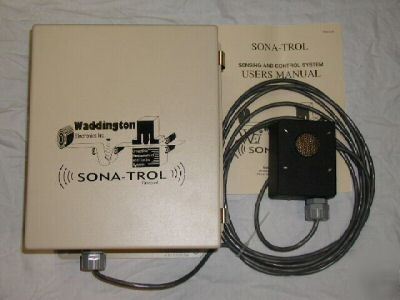

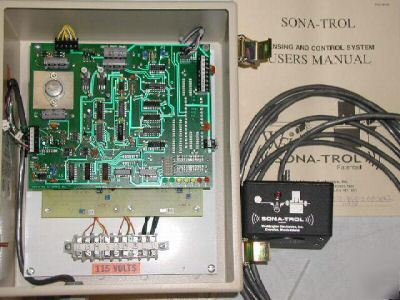

Sona-trol ultrasonic sensing & control system #ST6
Sona-Trol Ultrasonic Sensing & Control System
Unused surplus system w/ users manual
* Non-contact variable speed loop control.
* Works on virtually any material including paper, film or foil.
* Will not mark, scratch, dent, or tear sensitive materials.
* Sona-Trol patented analog output non-contact loop control is not limited to loop control applications.
* Sona-Trol can be used to control levels of liquids and solids in tanks.
* Sona-Trol can be used to control unwind and rewind tension.
* Sona-Trol can be used to detect the presence or absence of pallets in automated warehouses.
* Sona-Trol can measure changes as small as .010 inches.
* MRSH-Rev1, 6" to 20' - best for diameter measurement.
* 10' sensor head cable (20' cable included with this unit).
* Oil tight JIC enclosure.
* Electrically isolated sensor.
* Adjustable distance zero offset.
* Adjustable Receiver sensitivity.
* Includes an exclusive circuit that allows use in applications where bouncing strips are likely to cause false measurements. This proprietary circuit detects false signals and rejects them allowing Sona-Trol to give proper take-up and payoff smoothness regardless of strip bounce or sway.
* 115VAC ± 5% at 0.25A Nominal, 60 Hz.
* Base Speed Options: Option Selected.
* Current Loop Output: 0-10 mA
* Sensor Cable Length: 20 Feet
* Sensor Head: R2 MRSH2R1 6"-20' Range (Best for diameter measurement).
* Environment (Storage & Operating):
* Temperature: 20 to 160°F.
* Humidity: 95% (non-condensing).
* Transducer Range Resolution Accuracy:
* Standard & Environmental: 1.5' to 20' - 0.05" ± 0.05".
* Extended Range: 6" to 20' - 0.05" ± 0.05".
