Stresstel boltmike iii kit extensiometer + transducers
This is an unused Stresstel BoltMike III kit # 062-900-063 including two new 5mm 5MHz magnetic tranducers # 083-058-767.
This unit has never been used and is in 100% new condition. However, due to storage and not being ever used it will need the internal memory battery replaced as the "low internal memory battery" warning comes on immediately after power up.
StressTel leads the market in ultrasonic bolting extensometers with the BoltMike III. The StressTel BoltMike III Ultrasonic Bolt Extensometer measures strain in critical bolts per ASTM
E1685-00 providing necessary data on clamp load and induced stress in tensioned fasteners.
StressTel’s StressWare data collection and analysis software is included with each BoltMike III to interface data to your PC and provide quick and easy report generation.
Ultrasonic strain measurement is the accepted method of verifying bolt preloads in critical joints and the StressTel BoltMike III is the preferred tool for the application.

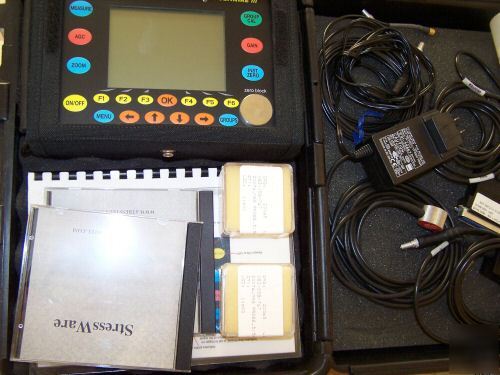

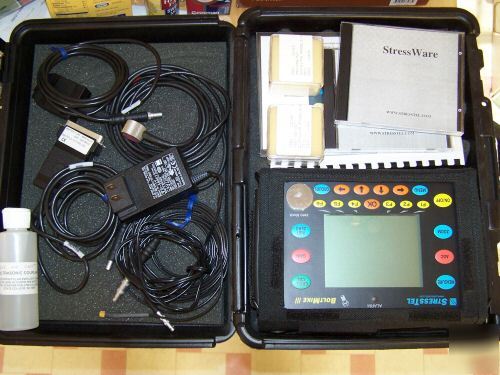

BoltMike III Instrument, 5 AA Alkaline Batteries, Operation Manual, Technical Manual, Instruction Card, Upgrade Software Utility, STRESSWARE Data Transfer Software, Serial PC Cable, Parallel Printer Cable, AC Power Supply, Couplant (4 oz.), Temperature Probe, Transducer Cables (2), Soft Carrying Case, and Hardshell
· Simultaneous display of fastener load, stress, and elongation
· Long 40 hour life with five standard "AA" alkaline batteries
· High resolution VGA LCD display to verify signal and optimize probe placement
· Large digit and baragraph display with limits for fast testing
· Automatic temperature compensation
· Built-in probe zero block allows easy exchange of transducers
· Regression analysis for custom material calibration
· Windows software to download measurements, create reports and upload test parameters
· 0.75 to 250 in / 19 to 6350 mm measurable fastener length
· Two measurement modes: Initial to first pulse; multiple echo for short fasteners
· Load, stress and elongation in English and Metric units
· 12 common fastener material constants
· 2.5 pounds (1.14kg) with batteries
· Shock resistant plastic case
· 3.8 x 2.8 in (96 x 71mm) Viewing Area
· Adjustable contrast and backlight
· Four-level ZOOM for signal enlargement
· 5 "AA" Alkaline or NiCad batteries
· Interchangeable and easy-to-access
· Operating time: 40 hours w/o backlight
· STRESSWARE (WINDOWS 95/98/ME/NT/2000) to download measurements, create reports, upload test parameters
