Lot of 6 cinch connectors 224-15-50-029 m-9649

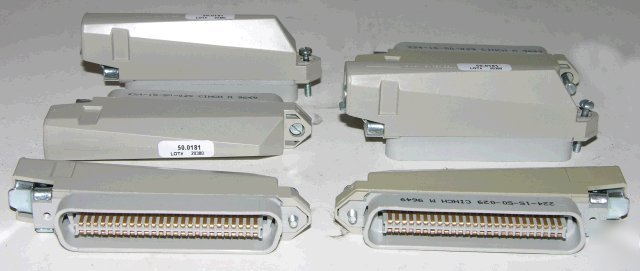

Lot of 6 Cinch Connectors 224-15-50-029 M-9649
Lot of 6 Cinch Connectors 224-15-50-029 M-9649
to E-Mail us to ask ANY questions.
These are New, out of box units.
Unit comes as shown, no other accessories are included.
Need multiple lots of 6? We've got them!
Manufacturer's Specifications/Features:
(Please note that not all features may be included in this item)
End-Entry connectors include a hood and integral cable clamp for cable exit from the end of the connector.
* The standard-orientation plug has the cable clamp on the position-1 end, and the standard-orientation socket has the clamp on the high position end.
* Cables may be extended end-to-end (i.e., running cable) by mating standard-orientation plugs and sockets, or doubled back by mating a standard-orientation connector with a reverse-orientation mate.
* Cables may exit either direction on a cable-to-panel application by choosing standard or reverse-orientation, depending on the desired direction of cable exit.
* Pointed-nose versions of the standard-orientation, 50-position size are slightly smaller than the square-end product and are suited to applications with limited space such as bridging adapters, etc.
* #4-40 versions include screws that are 3/4" long, suitable for locking directly to the body of another connector. For locking to connectors panel-mounted with screwlock hardware, shorter screws are required. See pages 6-51 thru 6-53 for these and other accessories, such as dust covers.
* Patented contact terminates Discrete Wire (loose or jacketed cable) without stripping or soldering solid- and stranded-wire versions available.
* All-plastic design reduces cost.
* Available in plug and socket styles in 14, 24, 36, 50, and 64 position sizes.
* Includes InstaLatch passive latch feature for automatic latching. Sockets are also available without latches.
* Available with .125" or #4-40 mounting holes. 50-position size plug also available to lock with industry-standard Bail Latches.
* Designed for panel mount, 180° (Top-Entry), or 90° (Standard) / 270° (Reverse) End-Entry cable application.
* Integral Cable Clamp on End-Entry versions provides superior strain relief, even with hood removed.
* Full range of application tooling is available for termination, unlatching, etc.
* UL Recognized - Files E170218 (UL1977), E130965 (UL1863).
* CSA Approved - File LR31996-7.
* Insulator: Gray UL94V-0 rated glass-filled polyester, except where noted
* Contact Plating: select gold over 50µin. select nickel standard. 30µin. select gold over 50µin. select nickel available where indicated
* Voltage Rating: 500 VAC @ sea level; 125 VAC @ 70,000 ft. * Withstanding Voltage: 1200 VAC RMS @ sea level, per EIA Std. RS364, TP20 * Contact Rating: 5 Amps (4 Amps per CSA) * Contact Resistance: 6 milliohms maximum, per EIA Std. RS364, TP6 * Contact Resistance Change During Life Conditioning: * Wire Size Resistance Change (milliohms, max.):
* Insulation Resistance: 5000 Megohms minimum initial. 1000 Megohms minimum after moisture
