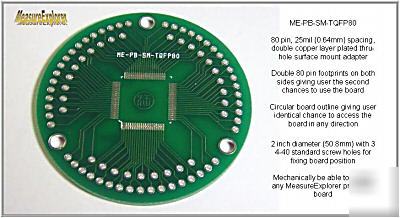

Me-pb-sm-TQFP80 smd/smt adapter prototype board
80 pin, 25mil (0.64mm) spacing, double copper layer plated thru-hole surface mount adapter
Double 80 pin footprints on both sides giving user the second chances to use the board
Circular board outline giving user identical chance to access the board in any direction
2 inch diameter (50.8mm) with 3 4-40 standard screw holes for fixing board position
Mechanically be able to couple any MeasureExplorer prototype board
There is a mistype in the description of this item. This is surface mount adapter for TQFP package with 0.5mm pin spacing. Sorry about that.
