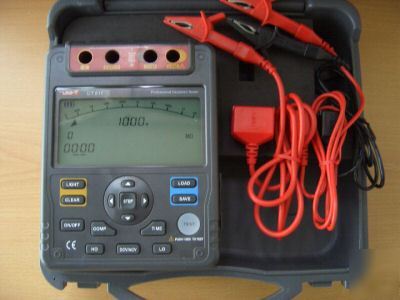

New uni-t,UT511 10G/1000V insulation resistance meter
"Professional Digital 10G Ohms / 1000V Insulation & Resistance Meter"
HIGH ACCURACY & RELIABILITY WITH WIDE MEASUREMENT RANGE !!!
COMPACT, RUGGED & HANDY DESIGN !!!
. 10G Ohms insulation resistance measurement;
. 0.1 to 1,000 ohms low resistance measurement;
. Selectable Test voltages 100V/250V /500V /1000 V;
. Auto Ranging for better measurement;
. Digital: 9999 counts / analog bar graph, Clear and large LCD display with backlight function;
. Overload / battery indication;
. Comparison measurement for setting PASS /FAIL Limits;
. Timed measurement for setting measuring period;
. Insulation Resistance Measurement Range:
Test voltage / measuring range:
- 250V, 0.5M ohm to 1.99G ohms;
- 1000V, 2M ohm to 10.00G ohms;
- Accuracy: - 100k ohm to 100M ohms ( +/-3% + 5 );
- Above 100M ohms, (+/-5% + 5 );
- Range / Resolution: 0.1 to 999.9 ohms ( 0.1 ohm );
- DC voltage: +/- 30V to +/-1000V;
- AC voltage: 30V to 750V ( 50/60Hz );
- Resolution / Accuracy: 1V , +/-2% +5;
. Operating Temperature: 0 to 40C;
. Battery type: 8 X 1.5V ( R14 or LR14 );
. Dimensions: 202 x 155 x 94mm;
. Weight: 2Kg ( inclusvie battery );
- One plug test lead to one alligator;
- 2 plugs test lead to one alligator;
Please ask air postage to other countries
QUANTITY DISCOUNT AVAILABLE !!!
If the item damaged upon received, please send e-mail immediately with picture within 5 days. After the investigation, we decide to the replacement.
- We regret not accept Personal Check; US local Postal Order.
Don't hesitate to ask if you have any inquiry.
