Linear actuator DL24-05B5-05CU

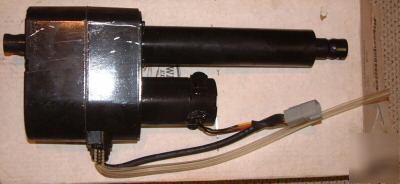

For Sale: One Warner Electric Linear Actuator. (it is new, never used old stock) The scratches on it are from the staples in the box.
This is basically a electric hydraulic cylinder. A electric motor turns gears that turn a screw that has a nut on it that moves the shaft in and out. There is no hydraulic oil in it.

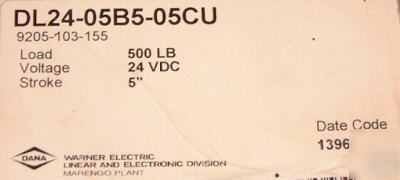

24 Volts DC. (change polarity to change direction)
5 inch Stroke (I don't think it had built in end limits)
Overall length 18 1/2 inches, 17 inches between mounting holes.
I believe that this unit was made for Hospital beds (power adjust) However you can use it to move whatever you want (5 inches) as long as you connect it properly and it is less than 500 LBs.
If you are looking at this you already have an idea what its for.
If you have questions ask I'll try to answer them.
I did some digging and here is the company that bought Dana\Warner or was it Dana bought Danaher\Warner\Motion either way here they are.
http:// /website/com/eng/index.php
And another info link http:// /linearactuatorsframe.htm
I don't know if they have any info on this unit but they are (what's left of) the people that built it and do have mounting do's and dont's. I believe that because this was a special purpose unit it is not in there catalogs. (that I have found)
Thanks for looking. Good luck.
I hate to have to state the obvious but... Packing supplies don't grow on trees well least not in my yard.
If I find that I have grossly over charged I will refund the extra.
