New idc 24" electric 24VDC cylinder RD358A-24 $3000
NEW IDC 24" ELECTRIC 24VDC CYLINDER RD358A-24 $3000

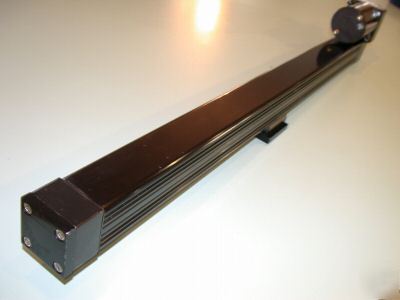

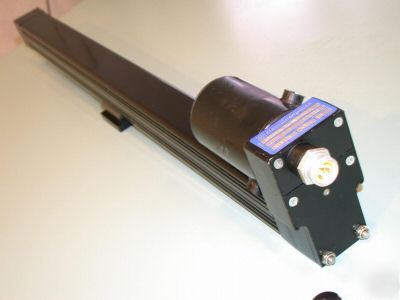

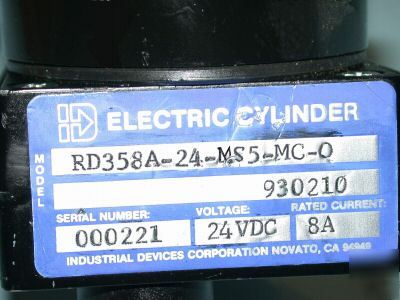

This is a New Electronic 24VDC Cylinder Slide manufactured by Industrial Devices Corporation, Model # RD358A-24-MS5-MC-0, with 24 inches of stroke and 34 inches overall length.
R3 series actuators fit the majority of rodless applications where carriage loads are less than 100 lbs [445 N]. A robust design using an internal linear motion guide rail and a built-in flexible seal ensures reliable operation in an industrial environment.
The R3 carriage seal and internal bearing design prevents lubricant contamination and nearly eliminates the need for routine maintenance.
Max. No Load Speed - 40 inches/second
Repeatability in [mm] - ±0.005 [0.13mm]
Temperature Range -20° to 140°F [-28° to 60°C]
Bearing Housing - 6063 T-6 aluminum, hardcoat anodized
Guide Housing - 6063 T-6 aluminum, hardcoat anodized
Carriage Assembly - 6061 T-6 aluminum, hardcoat anodized
Internal Rail Bearings - Recirculating ball on precision ground rail
http:// /products/rodless/index.html
This system has a cost of $3,000.
I will fully guarantee this item.
Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern).
