Lot 92 conduit supports braces angling, open wiring
For 1/2" Angling or Open Wiring
Fantastic Electronics and Communications Equipment at a Great Price

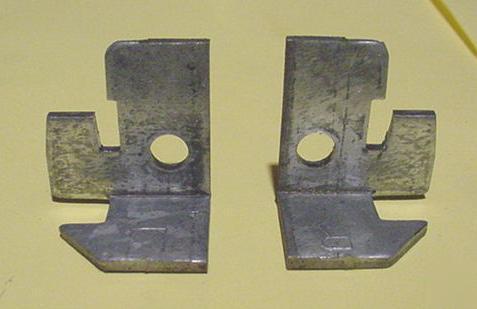

Instead of unreliable support methods, brace your conduits with these brackets. They screw straight into the drywall or beam and, on the side, they have slots that allow for angling and open wiring downward or backward (through the wall).
The base-side slot is 1/2" wide.
The backplate-side slots are 1/2" wide and 1/4" wide (for open wires).
47 of these are designed to angle to the right, while the other 45 are designed to angle to the left. While these can be quite useful for conduits, they can also be used as pipe supports or any other similar hardware application. As far as material and strength goes, the supports feel like tempered steel, or some other strong metal. See specific below and images above for details.
* Base Dimensions: 1-1/8" long x 1" deep
* Back-plate Dimensions: 1-1/4" long x 1-3/8" high
* 1/2" on base and back-plate (large slot)
* 1/4" on back-plate (small slot)
* Minimum Screw Head Size: 5/16"
* While my measurements and numbers are generally accurate, there is always a possibility of error, so any questions are welcome.
