Bga reballing repair rework jig fixture station

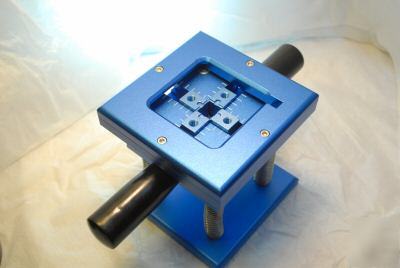

Up for sale is 1 set BGA reballing fixture.
If you are repairing the BGA and you find extremely hard to hand place each solder ball back to the BGA solder pad. This is the one you need for improve the quality and accuracy of reballing!
1. To spread a think layer of Flux on the BGA by cotton bud
3. fix the stencil (stencil hole to BGA pad)
4. Use Kapton tap to mask the un-use stencil hole
5. Apply the solder ball and spread them into the holes.
6. Push the handle down and take away the upper lid.
Different size of stencils, solider ball (Leaded and ROHS) are available, please check out listing.
