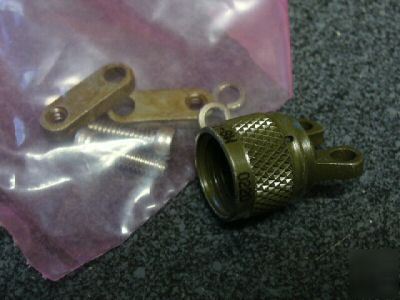

Clamp,cable,electrical connector
STYLE DESIGNATOR - 10B DOUBLE CLAMPING ACTION OPEN FRAME TYPE
OVERALL LENGTH - 0.890 INCHES NOMINAL
OVERALL DIAMETER - 0.732 INCHES NOMINAL
SURFACE TREATMENT - CADMIUM AND CHROMATE
MOUNTING FACILITY TYPE AND QUANTITY - 1 THREADED COUPLING
THREAD SERIES DESIGNATOR - UNF
NOMINAL THREAD SIZE - 0.500 INCHES
CABLE OPENING DIAMETER - 0.125 INCHES MINIMUM AND 0.204 INCHES MAXIMUM
TEST DATA DOCUMENT - 81349-MIL-C-85049 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-85049/52 GOVERNMENT SPECIFICATION
