North atlantic api-8025 angle position indicator

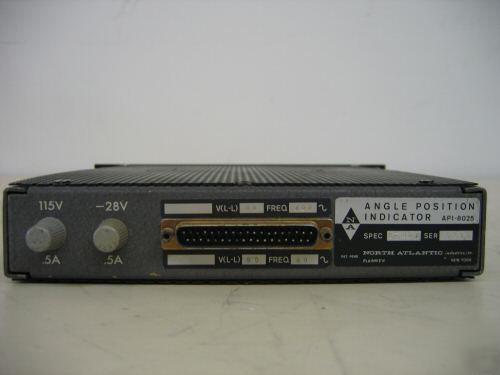

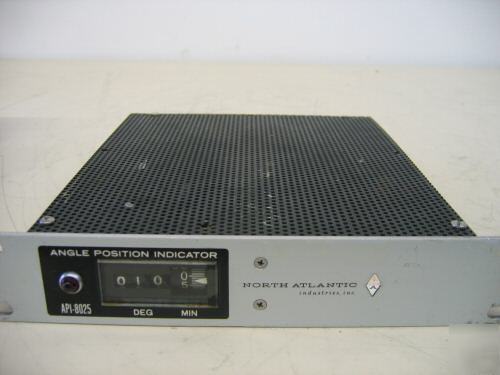

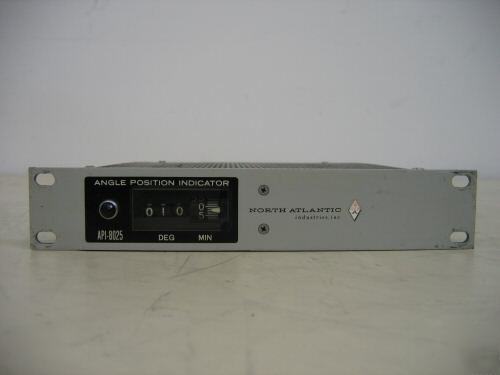

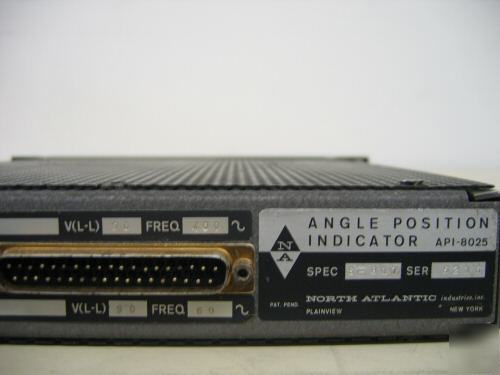

North Atlantic API-8025 Angle Position Indicator ( API8025 )
* Description: The North Atlantic API-8025 Angle Position Indicator is a a precision solid state instrument servo repeater designed to provide continuous digital readout of the angular shaft position of remote synchro or resolver components. A choice of rotary components and flexibility of design allows accommodation of single or multiple inputs from transmitters, receivers or differential components of any standard voltage or frequency. In addition, a number of retransmit options, such as synchros, potentiometers or shaft encoders are available. Repeatability and resolution of the API8025 Angle Position Indicator is 30 arc seconds. System accuracy is solely dependent on the accuracy of the internal follow-up component, typically a 6 arc minute synchro. Other specifications of the API-8025 include:
* Continuous digital readout, displays degrees and minutes, 1 minute graduations (readable to 30 seconds)
* Range: 0° to 360° continuous rotation
* Accuracy: ±6 minutes of arc
* Repeatability: ±30 seconds of arc
* Working Condition: Presumed Good but Untested
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
