Embest SAM9315V1 arm 920T 200MHZ development kit

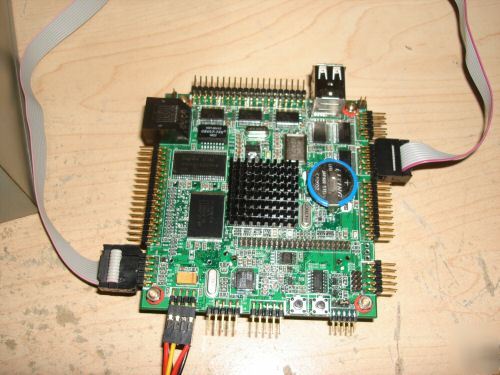

new embest SAM9315V1 embedded controller in a PC / 104 form factor (thats pretty small!!)
has all the specifics.

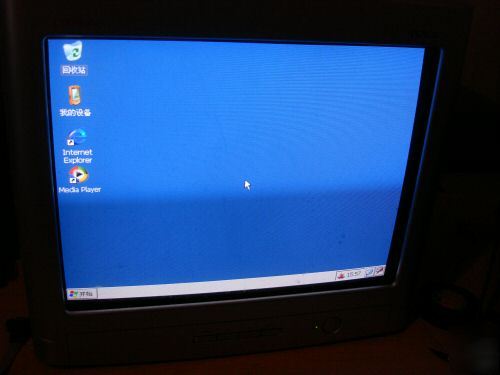

this comes with WINCE 5.0 BSP and has it already running on the board!! checkout the picture of the output on my vga monitor!!! thats wince 5.0
also comes with the linux package...

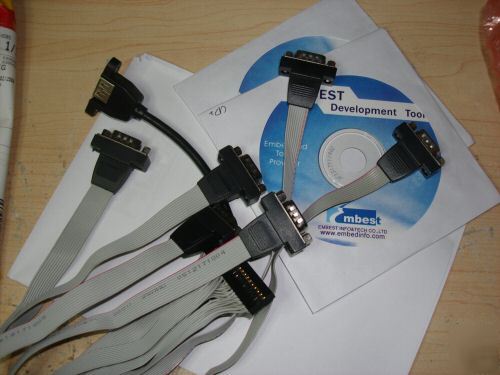

this comes with everything that comes with a new kit.

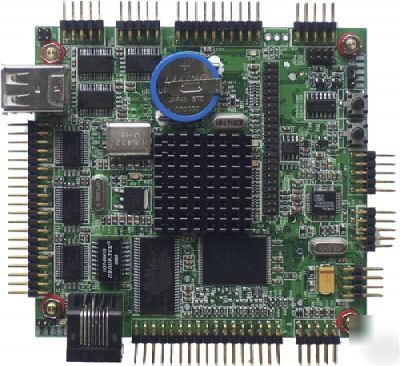

Embest SAM9315V1 is a compact single board computer (SBC) with PC/104-compliant form factor and built around a Cirrus Logic EP9315 microcontroller which features an advanced 200 MHz ARM920T processor designed with a memory management unit (MMU), 16KB data cache and 16KB instruction cache, a 100 MHz bus speed and the integration of an Ethernet MAC, PCMCIA support, two-channel IDE and three USB 2.0 hosts.
The board has been designed to provide the majority of the EP9315 functions. Its on-board I/O is as comprehensive as many functions can be realized including serial ports, Ethernet, USB, LCD/Touchscreen, VGA, Watchdog, Keyboard, Audio, IDE and PCMCIA CF socket. The board is also extended four additional serial ports and different signals RS232/TTL/RS485/RS422 are available from the four ports.
- intelligent house controllers
- multizoned stereo audio systems
Cirrus Logic EP9315 (capable of 200MHz operation)
LCD/VGA interfaces, supporting resolution: 640x480, 800x600, 1024x768
1 x LAN_10/100M Internet interface
1 x 20-pin 8*8 Keyboard interface
3 x serial ports (RS232/TTL/TTL)
4 x extended serial ports (RS232/TTL/RS485/RS422)
- 4 x extended Serial ports (9 lines)
