TC962 switched cap dc-dc converter ic 80MA 97% eff (X4)
No Inductor - just 3 other parts
97% power conversion efficiency
Get the voltages you need from low-cell-count battery powered equipment
The TC962 is an advanced version of the industry-standard 7662 high-voltage DC-to-DC converter. Using improved design techniques and CMOS construction, the TC962 can source as much as 80mA versus the 7662 ’s 20mA capability. As an inverter,the TC962 can put out voltages as high as 18V and as low as 3V without the need for external diodes. The output impedance of the device is a low 28 ? (with the proper capacitors), voltage conversion efficiency is 99.9%, and power conversion efficiency is 97%. The low voltage terminal (pin 6)required in some 7662 applications has been eliminated. Grounding this terminal will double the oscillator frequency from 12kHz to 24kHz. This will allow the use of smaller capacitors for the same output current and ripple, in most applications. Only two external capacitors are required for inverter applications. In the event an external clock is needed to drive the TC962 (such as paralleling),driving this pin directly will cause the internal oscillator to sync to the external clock.
- 97% Power conversion efficiency
- Can combine to get desired voltage/current from battery powered circuits.
Can obtain the following functions (see data sheet):
VOLTAGE DOUBLER provides twice the input voltage
SPLITTING a supply in 2 halves: Positive and negative rails
VOLTAGE INVERTER provides an equal and negative voltage to the input voltage
PARALLELLING of devices increases output current beyond 80 mA
CASCADING devices multiplies output voltage.
All circuits described in data sheet
US: $3.75 Canada: $4.50 International: $5.50 Parcel Post.
option is NOT FAST, and may experience delays that are not under seller's control. In choosing Parcel Post S&H option you agree that you have no time constraints, and you do not hold seller responsible for any transit delays.
2-nd item: saves 50% of its S&H
items 3, 4: each saves 60% off their S&H
items 5, 6, 7: each saves 70% off their S&H
items 8 and higher: save 80% off their S&H
Items are ordered highest S&H amount first.
Be sure to add me to your favorites list!

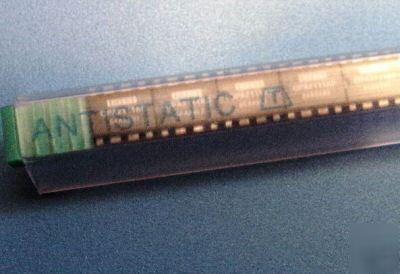

stock photo may show different part number
