Beko bush PDP42TV003A goodmans R82.195-04 power supply
Standby Power Supply PCB for Bush PDP42TV003A
This power supply pcb is the modified replacement type for many Bush, Goodmans etc plasma televisions. This standby power supply fails causing a dead set. The purpose of this power supply is to provide the 5 Volts required to power the standby circuit on the main pcb. The original part number on the board is R82.195-04 and the modified replacement type is R82.195-07
The replacement power supply does not fail and replacement of this pcb provides a permanent cure to the problem. This board is hard to obtain and will probably soon become obsolete.
The original board uses an FSD200 device which is very unreliable. Replacement of the board is the best cure for this problem as you will have no further failures.
This board is only to be fitted by those competent in repairing electrical equipment. The complete board is supplied for only £29.99. The fitting of this board is easy. Simply remove the three connectors and the four screws that hold the board in place. Refit the new board and plug in the connectors. No setup or adjustments are required.

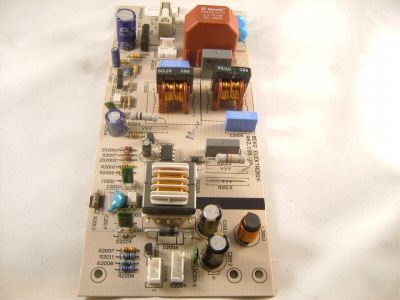

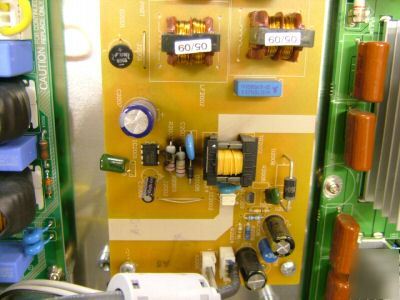

There are two photographs shown in this listing. The first is the original type as fitted in your set and this particular pcb has failed as you can see from the carbon deposits around the switching IC. The second photograph is the modified pcb which is manufactured to a much higher standard and does not use the notorious FSD200 as the switching device.
