Pnp transistor 40V 100MA IMBT3906 MMBT3906 sot-23

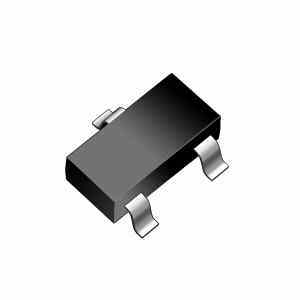

PNP Transistor 40V 100mA SOT-23
Part Number = IMBT3906 (Crosses to MM3906)
Description = Si PNP LP HF BJT
I(C) Abs.(A) Collector Current = 100m
Absolute Max. Power Diss. (W) = 310m
h(FE) Min. Static Current Gain = 100
h(FE) Max. Current gain. = 300
@I(C) (A) (Test Condition) = 10m
@V(CE) (V) (Test Condition) = 1.0
f(T) Min. (Hz) Transition Freq = 250M
@I(C) (A) (Test Condition) = 10m
@V(CE) (V) (Test Condition) = 20
@I(C) (A) (Test Condition) = 50m
@I(B) (A) (Test Condition) = 5.0m
h(fe) Min. SS Current gain. = 30
@I(C) (A) (Test Condition) = 100m
@V(CE) (V) (Test Condition) = 1.0
t(d) Max. (s) Delay time. = 35n
t(s) Max. (s) Storage time. = 225n
t(f) Max. (s) Fall time. = 75n
@V(CB) (V) (Test Condition) = 5.0
