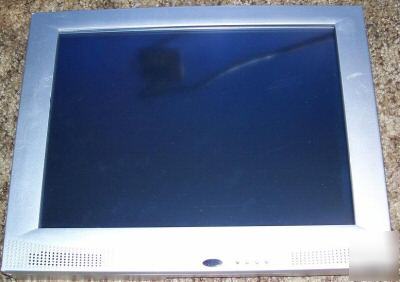

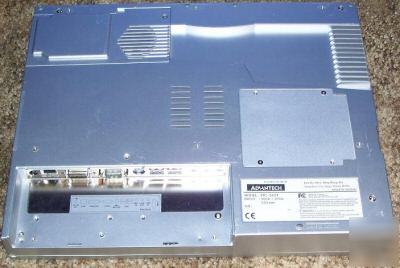

Advantech ppc-S153T ultraslim 15" color tft panel pc


Tested - Works Great - No Power Adapter Included - No OS Loaded - 1Ghz Pentium III Processor - 512MB RAM - 40GB Hard Drive - Minor Scuffed / Scratched Screen / Screen Frame
Online Download /products
All product specifications are subject to change without notice Last updated:1-Aug-2006
 Intel® Pentium® III CPU to 1 GHz
 One MINI PCI socket expansion
 UltraSlim profile: only 49 mm (1.93") in depth
The PPC-S153T is a high performance and UltraSlimTM 15" Panel Computer, incorporating all the features of a powerful computer packed into a slim and stylish housing. Its streamline
design occupies only 49 mm in depth. Built with a 15" TFT XGA LCD, a powerful Intel Pentium lll CPU up to 1 GHz and a built-in 3D display engine, the PPC-S153T provides a
state-of-the-art information terminal or computing platform for POI, and multimedia. Meanwhile, the compact and slim design makes PPC-S153T flexible to install. Wall mounting,
hanging, swing arm mounting, and desktop stand mounting are all possible options.
 CPU Supports Socket 370 based Intel Pentium III CPU up to
 Memory Supports up to 1 GB SDRAM SODIMM
 Disk Drive Housing Room for one 2.5" HDD
 SSD Supports 1 internal CompactFlash Type II socket
 HDD One IDE HDD interface (2.5" HDD bay)
 FDD Supports 720 KB / 1.44 MB FDD
 CD-ROM Drive Compact 24X or above
 DVD-ROM Drive Optional 6X or above
 Combo drive Optional DVD/CD-RW 8D/24W/24E/24R or above
 Network (LAN) 10/100Base-T Ethernet interface
 I/O Ports - 2 serial ports: RS-232 x 1, RS-232/422/485 x 1
- 1 parallel port, 4 USB ports
- 1 PS/2 mouse and keyboard interface
 Bus Expansion One MINI PCI expansion slot
 Front Panel Protection IP 65/NEMA 4 compliant
 Dimensions (W x H x D) 375 x 299 x 49 mm (14.76" x 11.77" x 1.93")
 Pixel Pitch 0.297 x 0.297 mm
 Viewing Angle 60° (left), 60° (right), 40° (up), 60° (down)
 Brightness Control Yes (Hot key)
 Simultaneous Mode Yes (Optional)
 Type Analog resistive, continuous resolution
 Power Consumption < 5 V @ 100 mA
 Software Driver Supports DOS, Windows 95/98/NT/ME/2000/XP
 Output Rating Onboard DC/DC power supply 70W
 Input Voltage 24 VDC (Typical)
 Outpout Voltage 5V @ 12A, 24V @ 0.3A
 Adaptor 100~240 VAC to 19 VDC @ 3.79 A
 Operating Temperature 0 ~ 45° C (32 ~ 113° F)
 Relative Humidity 10 ~ 95% @ 40° C, non-condensing
 Shock 10 G peak acceleration (11 msec. duration)
http://taiwan.advantech.com.tw/unzipfunc/Unzip/1-6P1XL/PPC-S153T_ds.pdf
