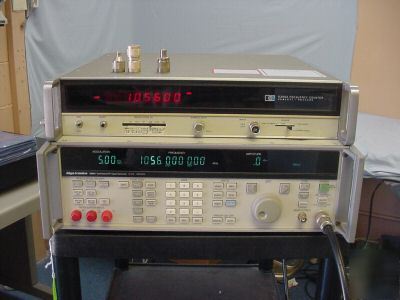

Fluke/gigatronics 6080A synthesized rf signal generator
It is in good used condition. Shown working. A very nice additional to any bench.
1 – Fluke/Gigatronics 6080A Signal Generator With Option 130 High Stability Reference
1 – Type (N) BnC Female Adapter
1 – Type (N) Male to Male Adapter
1 – Type (N) SMA Female Adapter
Please Note: This Generator is in good working order and has been TESTED by our on-site lab Technician!
SOLD WITH A 7-DAY RIGHT OF INSPECTION!
The 6080A Synthesized RF Signal Generator is a fully programmable, precision, synthesized signal sources.
It is designed for applications that require good modulation, frequency and output level performance with excellent
spectral purity. It is well suited for testing a wide variety of RF components, sub-assemblies, and systems,
including filters, amplifiers, mixers, and receivers, particularly off-channel radio testing.
Uncompromising performance is the reason the 6080A is preferred for critical receiver testing, RF design and ATE systems.
HIGH PERFORMANCE COMES STANDARD
The 6080A gives you exceptional spectral purity. Phase noise at 1 GHz is -131 dBc/Hz at 20 kHz offset.
Non-harmonic spurious performance is -100 dBc at 1 GHz. And residual FM is a low 1.5 Hz, which is ideal for both
high performance receiver test and LO substitution. The output level of +19 dBm (+20 dBm with overranging) gives
you all the power you need for receiver overload tests, LO substitution, and for driving high level mixers.
At -140 dBm (-147 dBm with underranging), the 6080A is ideal for receiver sensitivity or noise figure measurements.
And low RF IMD makes both instruments ideal for receiver selectivity or SSB two-tone testing.
AM, FM, phase and pulse modulation are all available, and can be combined for complex signal simulation.
FM deviation to 8 MHz, plus rates from dc to 100 kHz, provide the versatility you need to test mobile, cellular and
military communications, as well as pagers, surveillance receivers and more. Pulse rise time is <15 ns (<7.5 ns typical).
While the on/off ratio of the 6082A is 80 dB, making it well-suited for a host of radar component testing applications.
And the internal modulation oscillator makes it possible to produce pulse waveforms phase-locked with the RF carrier.
If you’re involved in characterizing RF subassemblies, log amplifiers, mixers and other RF components, you’ll appreciate
the time you save using the frequency and amplitude sweep capability of the 6080A. When you can’t afford to compromise
on performance, Giga-tronics has the only Synthesized RF Signal Generators you can afford.
· Synthesized Signal Generator
· Frequency Range 10 KHz to 1056 MHz
· Max Output +19 dBm (.01-512 MHz)/+17 dBm (512-1056 MHz)
· Modulation AM/FM/Pulse,Internal/External
· 3 Digital Displays Frequency/Amplitude/Modulation
· Sweep Functions Frequency/Amplitude
· Standard Time Base 10 MHz ,+/- 1 PPM/YR
View Fluke/Gigatronic's Instruction Manual
