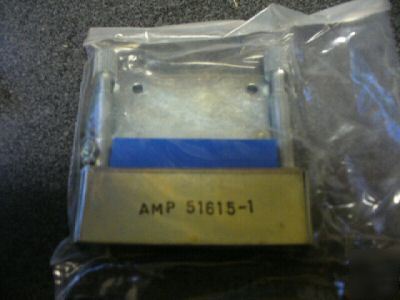

Connector body,plug,electrical
BODY STYLE - 18A HOOD, TOP OPENING W/CLAMP
OVERALL LENGTH - 2.325 INCHES MINIMUM AND 2.355 INCHES MAXIMUM
OVERALL HEIGHT - 2.543 INCHES MINIMUM AND 2.593 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.138 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
SHELL TYPE - HOOD, SIDE OPENING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - MIL-S-4174 MIL SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,CL 2,TY 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - JACKSCREW
CONTACT POSITION ARRANGEMENT STYLE - AXAE 21 SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
(NON-CORE DATA) JACKSCREW TYPE AND LOCATION - FEMALE LEFT-HAND AND MALE RIGHT-HAND
(NON-CORE DATA) MISSING CONTACT TYPE AND QUANTITY - 21 ROUND PIN
