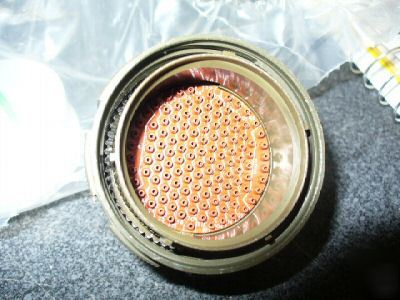

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 33.2 MILLIMETERS MAXIMUM
OVERALL DIAMETER - 48.0 MILLIMETERS MAXIMUM
THREAD PITCH IN MILLIMETERS - 1.00
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE - 37.0 MILLIMETERS AND 1.625 INCHES
THREAD TOLERANCE CLASS - 6G EXTERNAL
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG - 66.0 AND 140.0 AND 200.0 AND 257.0
CONTACT POSITION ARRANGEMENT STYLE - FAAD 24-35 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 128 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
SPECIAL FEATURES - 25-35 INSERT CONFIGURATION
TEST DATA DOCUMENT - 81349-DOD-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-DOD-C-38999/26 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.128 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - DOD-C-38999/26
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - D38999/26WJ35PC
