Honeywell udc 700 temperature controller kiln control

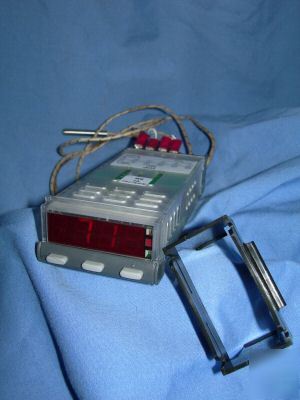

1 - Honeywell DC70A which is a customized UDC700 Micro-Pro. DOES NOT INCLUDE RTD
CUSTOMIZATION: RTD only; alarms are or'd together so that if either alarm 1 or alarm 2 is made they will turn on the output. OUTPUTS: 1- 12vdc ssr alarm output. 1- 12vdc ssr control output. PV disdlayed as whole no. ( no decimal point). Alarms and SP can be set to XXX.X accuracy. When an alarm is present PV display will toggle between PV and Hi if high alarm present or PV and Lo if lo alarm is present. Single red LED that flashes when an alarm is present. All other parameters are like the UDC700.
TESTED: Power up is good.The control and alarm ssr was tested for 12vdc and they are good.
POWER: 100-240 VAC. 1 - 12vdc ssr control output, 1 - 12vdc alarm output.
TEMP: Reads in C or F. C is -199C to 802C. F is -327F to 1475F
http://honeywell.silverw.com/docs/EN1I-6226.pdf
http://honeywell.silverw.com/docs/EN1I-6227.pdf
