New ifm efector switching amplifier N600, DN0213, brand

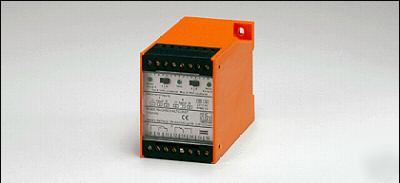

*IFM Efector* Switching Amplifier...Type N600
*Housing for DIN rail mounting
*2-channel, selectable for PNP and NPN switching sensors
* Application : Power supply and signal evaluation (e.g. for sensors)
* Output : Relay (1 changeover contact per channel)
* Nominal voltage [V] : 110 AC (47...63 Hz)
* Voltage tolerance [%] : ± 10
* Contact rating : 4 A / 625 VA / 250 V AC
* Sensor supply [V] : 24 DC; ±5% (max. 40 mA)
* Switching frequency [Hz] : 10
* Switching function : F1/F2, with slide switch
* Operating temperature [°C] : 0...50
* Protection housing / terminals : IP 40 / IP 20
* Housing material : plastics
* Function display/Switching status LED : green (lights when the output relay is energised)
* Connection : terminals up to 4 mm²
This item is BRAND NEW in box,,,leftover from previous jobs/instalations.
SAVE$$$$$$$$$$$$$$$$$$...retals for over $275.00
