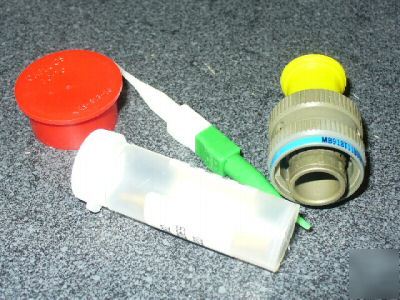

Connector,plug,electrical
BODY STYLE - 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL
OVERALL LENGTH - 1.531 INCHES NOMINAL
OVERALL DIAMETER - 0.984 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.562 INCHES
NOMINAL THREAD LENGTH - 0.300 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - APBK 11-35 SINGLE MATING END
INSERT MATERIAL - PLASTIC EPOXY SINGLE MATING END
INCLUDED CONTACT QUANTITY - 13 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-38999 SPECIFICATION
III PRECIOUS MATERIAL - GOLD AND SILVER
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-38999
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS27467T11B35P
