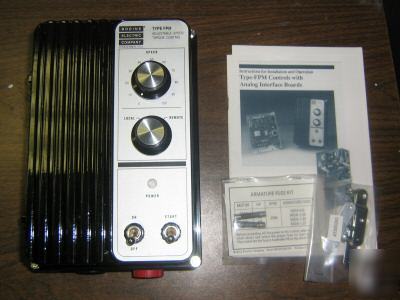

New bodine electric dc motor control fpm model 836 * *
Filtered SCR DC Remote Speed Control Model 0836 NOTE: Models N0817, N0837, and N0857 will become obsolete on October 1, 2007.
* Operates off 115 Volt AC line, 50/60 Hz.
* Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
* Dip switches to easily calibrate control for different motor sizes.
* Line voltage and temperature compensation minimizes speed drift.
* NEMA 12 enclosure for environmental protection.

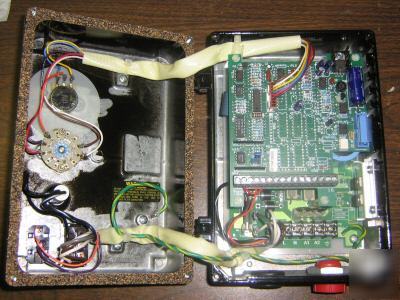

* Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
* Speed can be adjusted manually using speed pot mounted on enclosure.
* Terminal block inside enclosure for quick line and motor connection.
* Fuse holders for line and motor inside enclosure (both fuses supplied).
Filtered SCR DC Remote Speed Control
View a selection guide for this series here »
* Rated for continuous operation in 40° ambient with no additional heat sink.
* Drives Bodine 130V Permanent Magnet DC Motors.
* Drives 90V "SCR duty" and 130V "PWM duty" permanent magnet DC motors made by other manufacturers.
* IP44 sealing kit model 0895 for protection against splashing water.
* View a replacement parts list for model 0816 and 0817 in PDF format here »
Filtered SCR DC NEMA 12, Remote Speed Control FPM
Continuous Output Current (Amps)
Do not to hesitate to ask any questions about this item or any others that i have.
