Thermocouple simulator - voltage calibrator

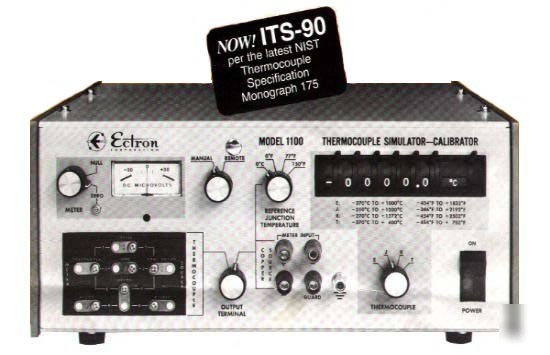

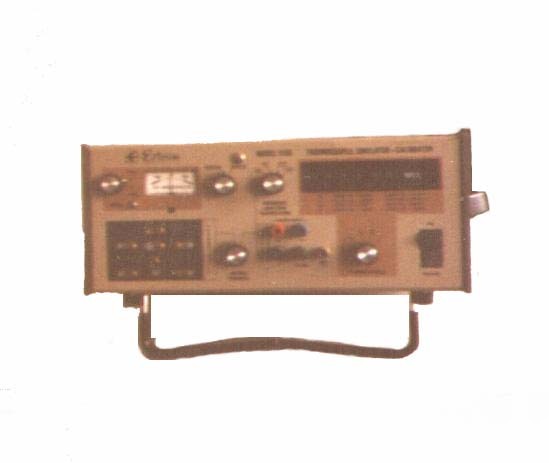

This Model 1100 Thermocouple Simulator/Calibrator manufactured by the Ectron Corporation, simplifies the calibration of Thermocouple measuring instruments and includes linear DC calibration capability.
It is a sophisticated and versatile instrument which has been designed both to generate and to measure precise voltages. It is equally useful on the production line and in the laboratory. Although it's most frequent application is to calibrate temperature indicating devices such as Digital Thermometers,Thermocouple Recorders, etc., it actually functions in four seperate and distinct ways.
As a: A. Thermocouple Simulator B. Thermocouple Calibrator C. Linear DC Voltage Calibrator D. Linear DC Differential Voltmeter
Please click on the lower left picture to expand, read, and/or copy the specifications for the device. CALIBRATION CAPABILITIES INCLUDE Thermocouple Applications: Temperature Indicators, Data Systems, Temperature Transmitters, Amplifiers and Linearizers, Temperature Controllers, Thermocouples. Linear Applications: DC Digital Voltmeters, Panel Meters, Strip Chart Recorders, Millivoltmeters, VCO's and Amplifiers
Features: Simulates 4 TC types, gives Dial Temperature in Degrees, Digital Conformity to NIST 0.1 degree, Self-Contained Ref. Junction, Dial Millivolts Directly, 0.01% of Reading Accuracy, Optional Remote Programming.
