Purple deutsch 3 pin dt connector kit, 18-16 awg
A RACE CAR ELECTRONICS EXCLUSIVE
THE FINISHED PRODUCT IS SIMILAR TO ANODIZED ALUMINUM, THE COLOR IS IMPREGNATED ABOUT .010 INTO THE CONNECTOR.

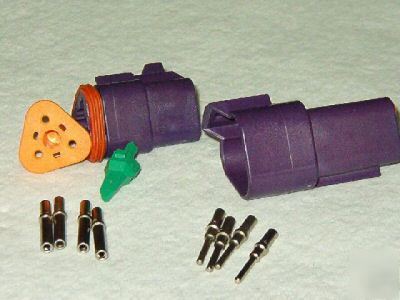

THIS LISTING IS FOR A PURPLE DEUTSCH 3 PIN DT SERIES CONNECTOR KIT
Includes both Connectors, Wedge locks, and
Solid Contacts for 18 AWG Thru 16 AWG. Wire.
1 DT06-3S 3 Pin Plug for female contacts
4 0(***)-202-16141 Solid Pins - 16-18 AWG
1 DT04-3P 6 Pin Receptacle for male contacts
4 0(***)-201-16141 Solid Sockets - 16-18 AWG
FOR OTHER DEUTSCH CONNECTORS, AND ACCESSORIES.
WE ALSO HAVE CONTACTS FOR 14 AWG WIRE FOR THESE CONNECTORS
ALL ORDERS OVER $100.00 RECEIVE A FREE WEDGELOCK EXTRACTION TOOL.
The Connector System chosen by many top NASCAR, IRL, CCWS, Formula 1, ALMS, Grand American Road Racing Association Racing Teams, and by leading manufactures do to its reliability, serviceability, and common terminal / crimper system. One set of crimpers, crimps wires from 26 AWG to 12 AWG.
A small screwdriver is all you need for terminal extraction.
A small modified screwdriver, or small needle nose pliers is all you need for Wedglock extraction.
All orders receive instructions on how to modify the screwdriver.
MORE REASONS WHY YOU SHOULD BE USING DEUTSCH ON YOUR RACE CAR OR PROJECTS.
· Flame-retardant: Deutsch engineers specify flame-retardant, high grade thermoplastics for all Deutsch connector molded components to reduce the risk of fire. Impact Resistant Materials Thermoplastic materials are selected to avoid breakage caused by impact during use.
· Operating temperatures: From –67 degrees F to +257 degrees F (-55 C to +125 C).
· DT Series Current Rating: 13 amps
· Physical Shock: No Unlocking, or unmateing during or after 50 g’s in each of 3 mutually perpendicular Planes.
· Vibration: Maintains Continuity and exhibits no mechanical or physical damage after vibration of 20 g’s at 10-2000 HZ.
· Durability: No electrical or mechanical defects after 100 cycles of engagement, or disengagement.
· Submersion: Properly wired and mated connections will withstand immersion under 3 feet of water without loss of electronic qualities or leakage. Meets requirements of IP6K9K and IP67. NOTE Submersion is not PRESSURE WASHING. If you directly blast these, or any other style of sealed connector with a pressure washer, you will fill them up. Because they are sealed, they will hold the water inside them.
· Increased Socket-Terminal Performance: All copper crimp-type socket terminals increase service life by providing a stainless steel sleeve over the contact fingers to protect them from damage.
· Fail Safe Connector Assembly: DT connectors provide a design that allows the wedge to be installed only if the contacts are fully inserted and provides that the connectors can only be coupled if the wedges are fully inserted.
· Improved Field Performance: Deutsch connectors are designed to carry the rated current at maximum rated temperature to provide confidence in all applications.
· Air-Tight Crimp: Terminations When properly crimped, Deutsch terminations provide an air-tight crimp which is highly resistant to increases in resistance as a result of temperature and oxidation.
· Silicone Wire Seals: Deutsch wire seals are devoid of all organic matter and are an integral component of the connector which eliminates the need to assemble seals on wire leads thus reducing wire termination assembly time and cost.
· No Retention “Tangsâ€: Deutsch contact retention is designed in the connector insert and therefore not exposed to damage during assembly and rework. Since Deutsch solid contacts are manufactured by a cold-forming process, most random variations are eliminated, which leads to consistent and predictable performance.
· Extended Wire Sealing Range: The standard connectors seal over a broad wire diameter range. This provides wire sealing with a minimum number of parts, which makes design and parts inventories easier.
· 2 types of terminals are available for the Deutsch Connectors, Solid, or Stamped & Formed. At this time we only carry the Solid.
